Coyote SL-Series 36" Grill Package - Includes 36" SL-Series Grill, 36" Double Access Door & Double Side Burner - C3SL36+C3-DA2436+C3DB

Package Includes

• Coyote SL-Series 36" Built-In Gas Grill with Sear Zone & Rotisserie - C3SL36
• Coyote 36" Double Access Door - C3-DA2436
• Coyote 12" Built-In Double Side Burner - C3DB

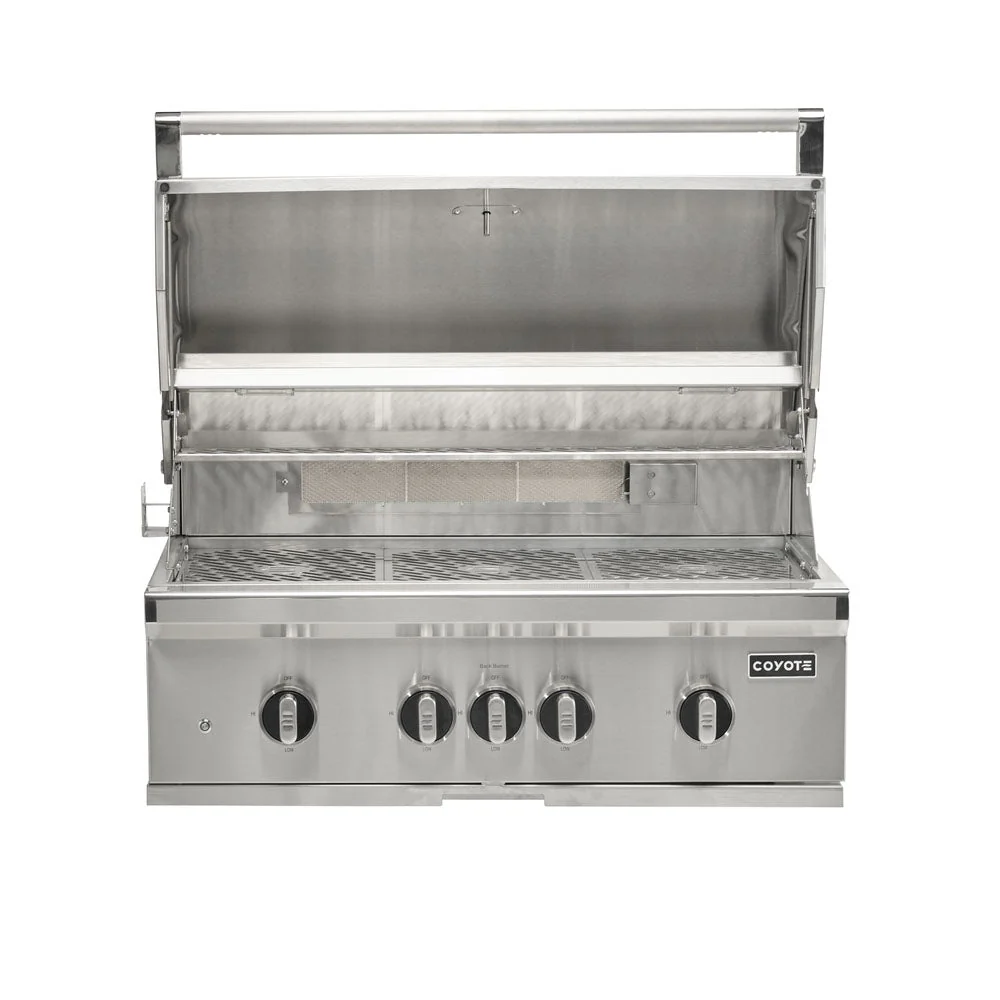

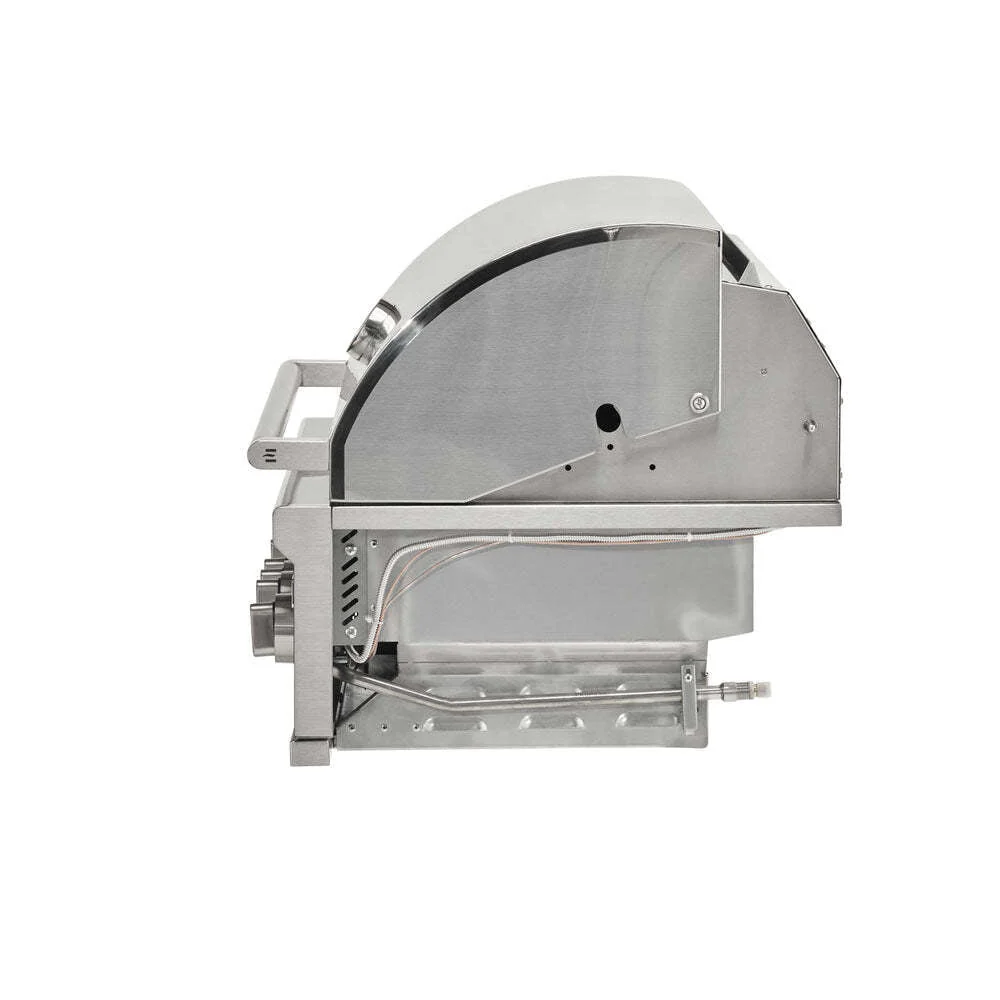

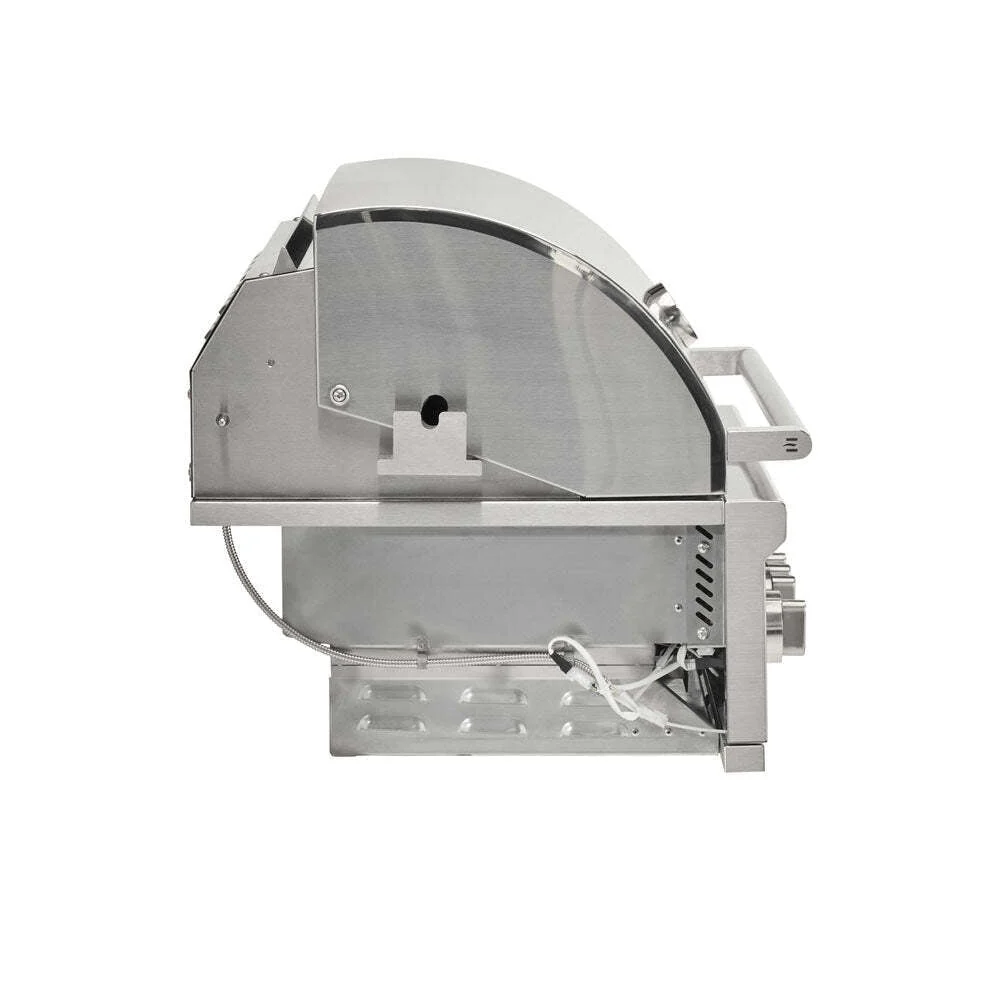

Coyote SL-Series 36" Built-In Gas Grill with Sear Zone & Rotisserie - C3SL36 Features:

Overall Dimensions: 23" H x 35 1/2" W x 25 1/2" D
Cutout Dimensions: 10 1/4" H x 32 1/2" W x 20 1/2" D

Features & Benefits

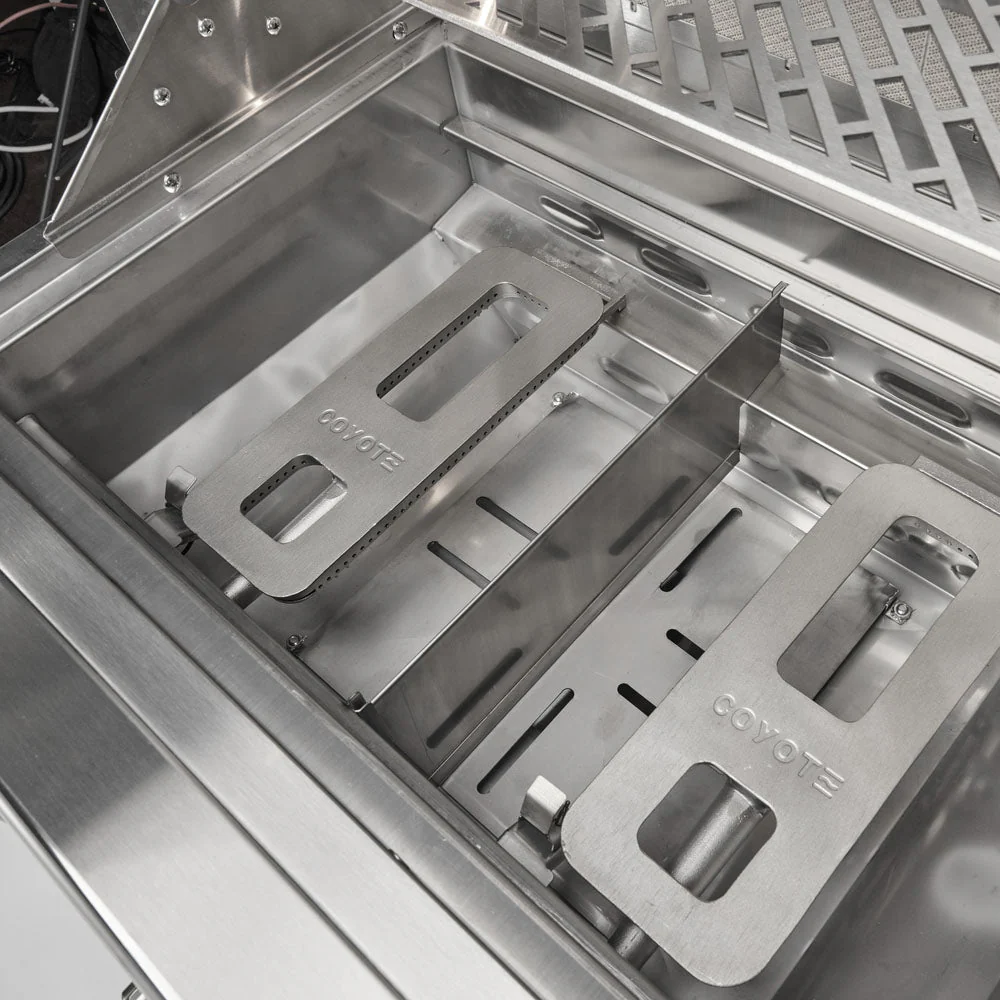

• Infinity Burners
• Newly redesigned end cap and handle

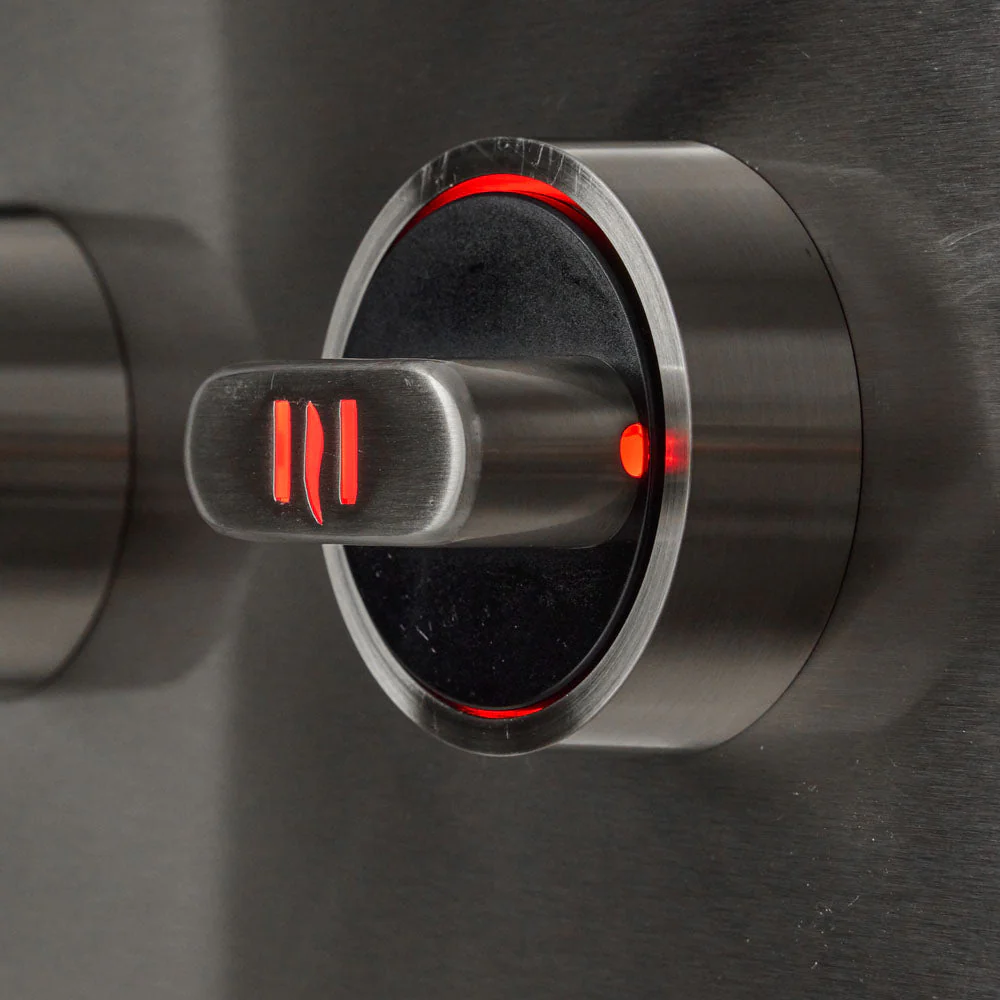

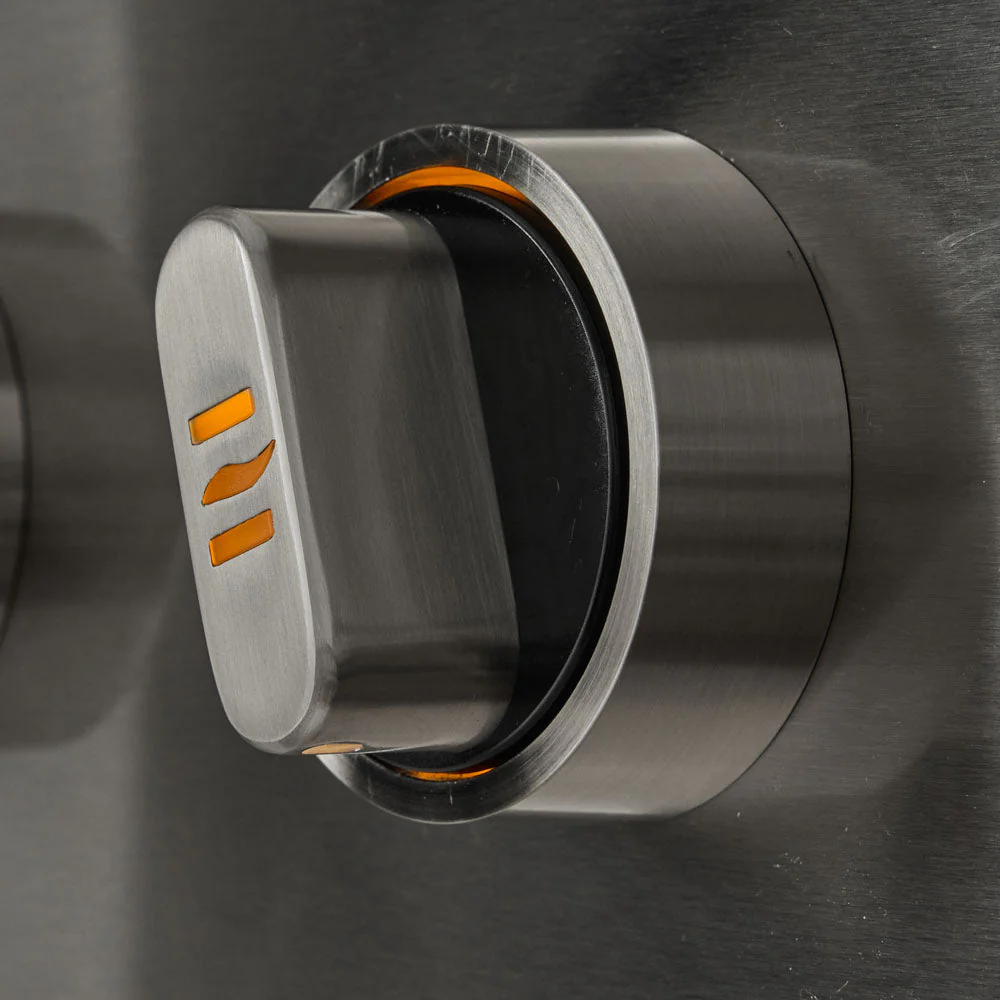

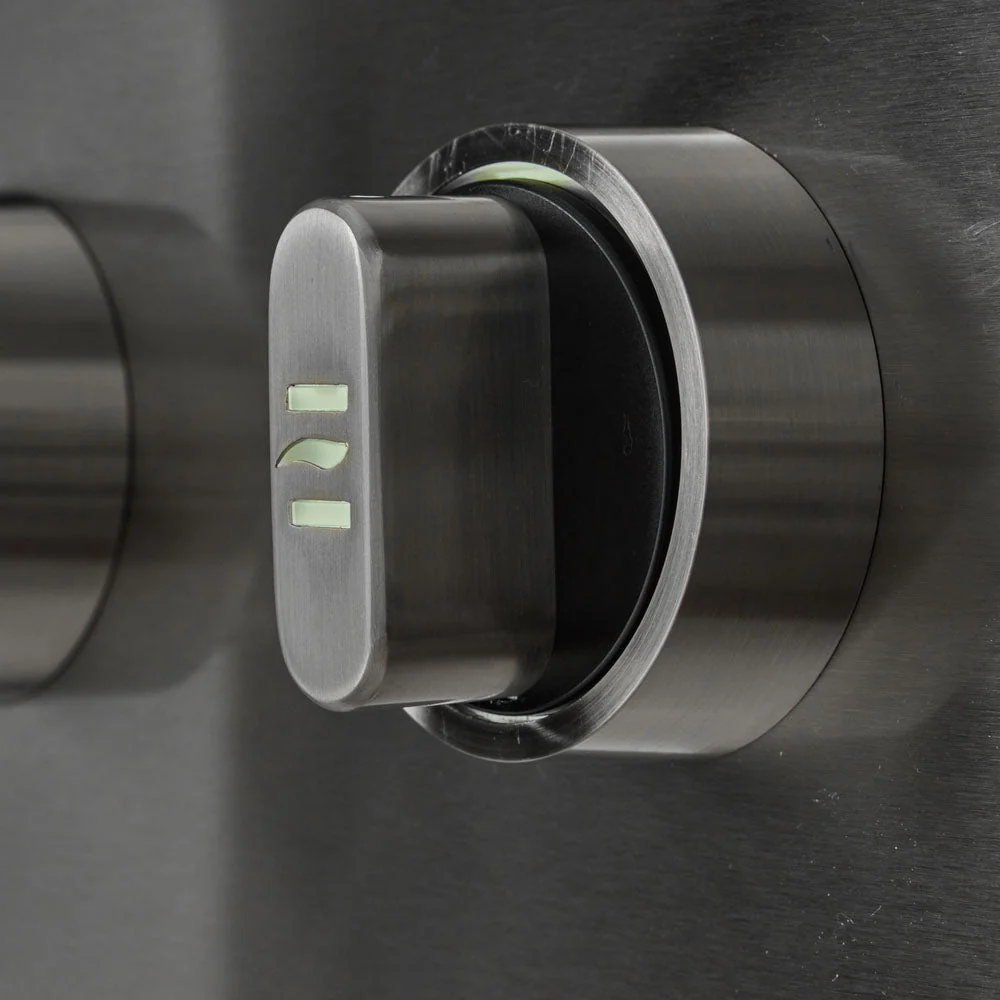

• Newly redesigned knob and bezel with gradient light
• Integrated Windguard
• Smudge Proof Control Panel
• Newly designed stainless steel heat control grids
• Knob color inserts available

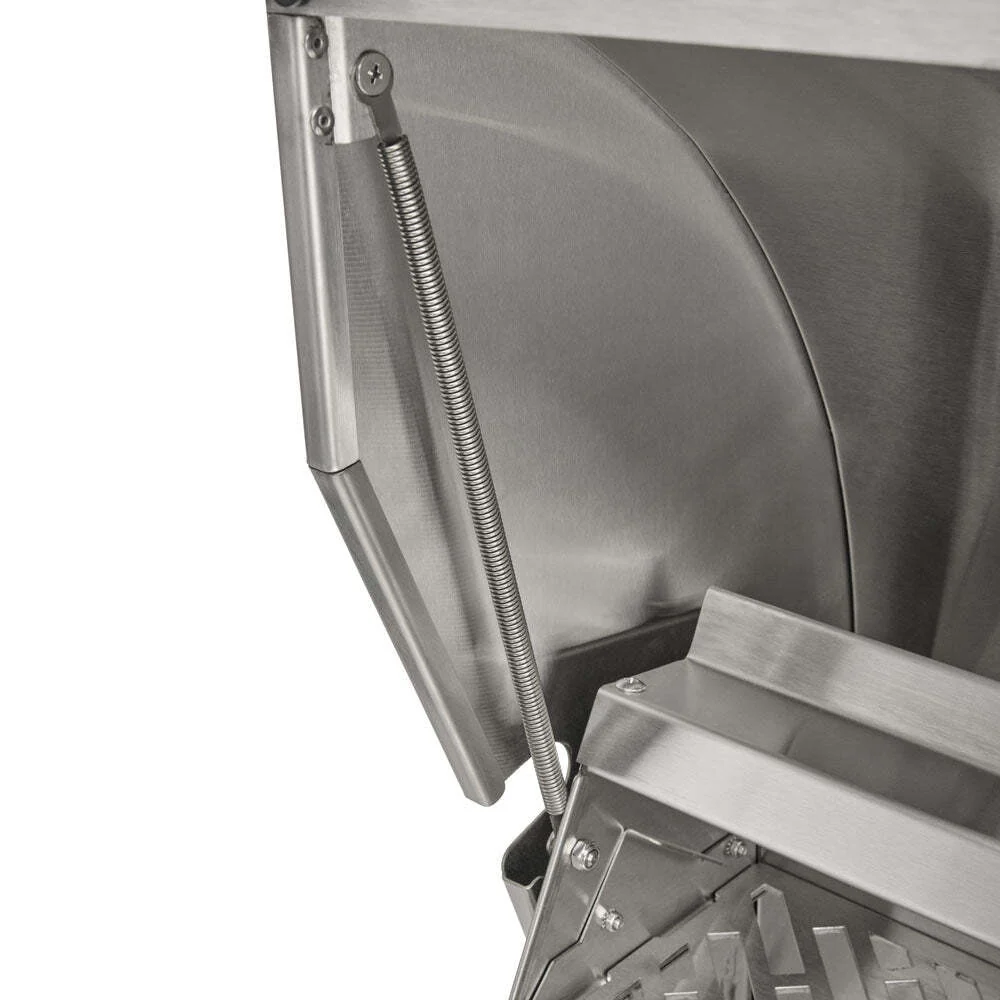

• Spring assisted hood
• Heat dividers

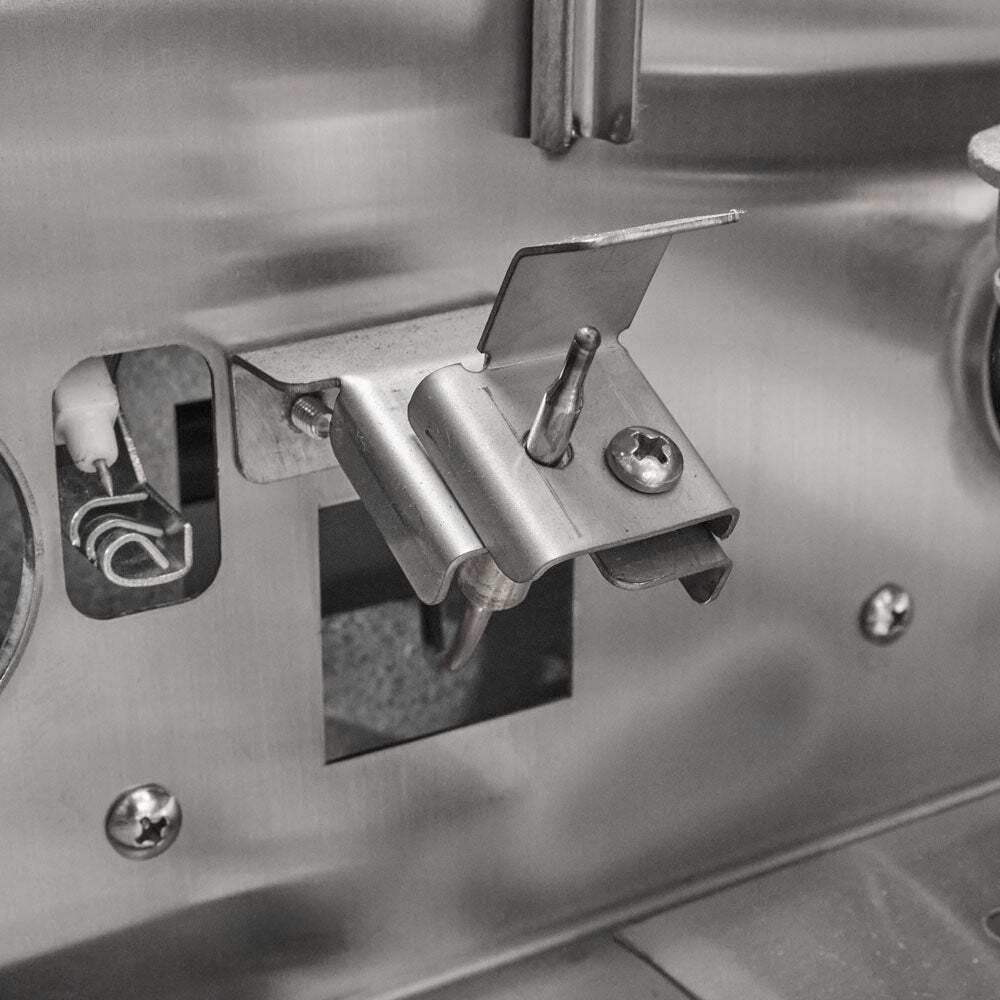

• Safety Valves - Thermocouple

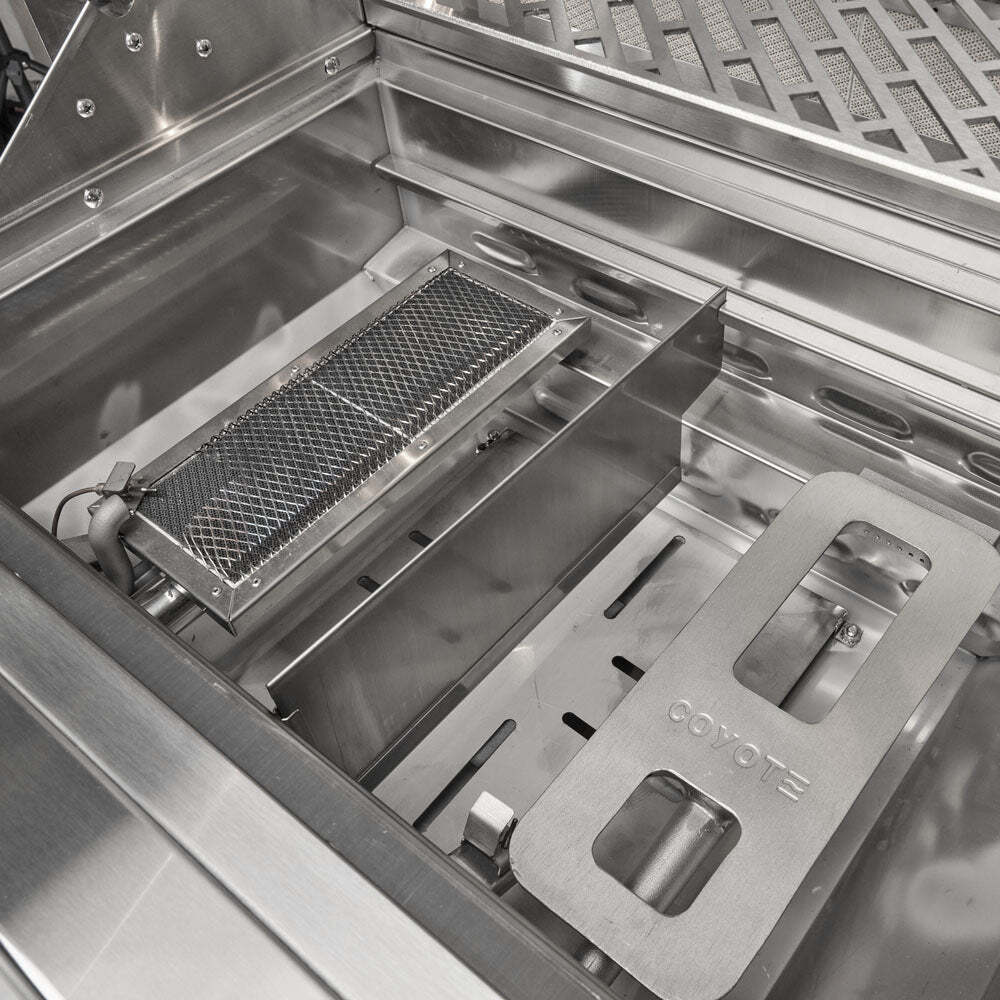

• Interchangeable Sear Burner

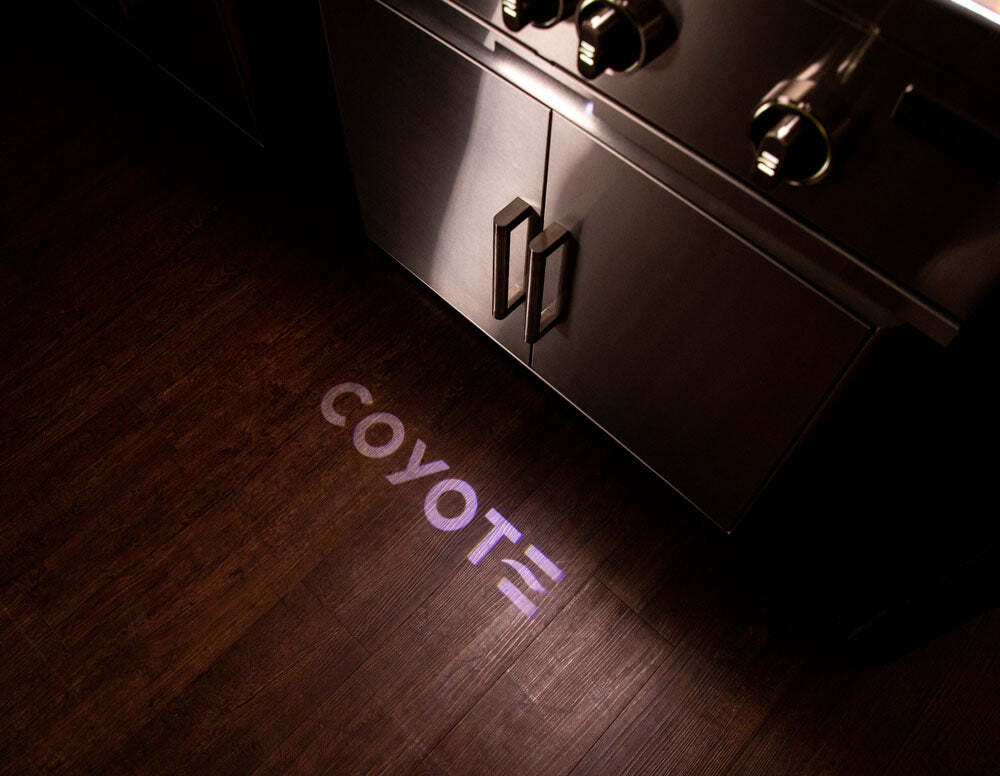

• Throw Light

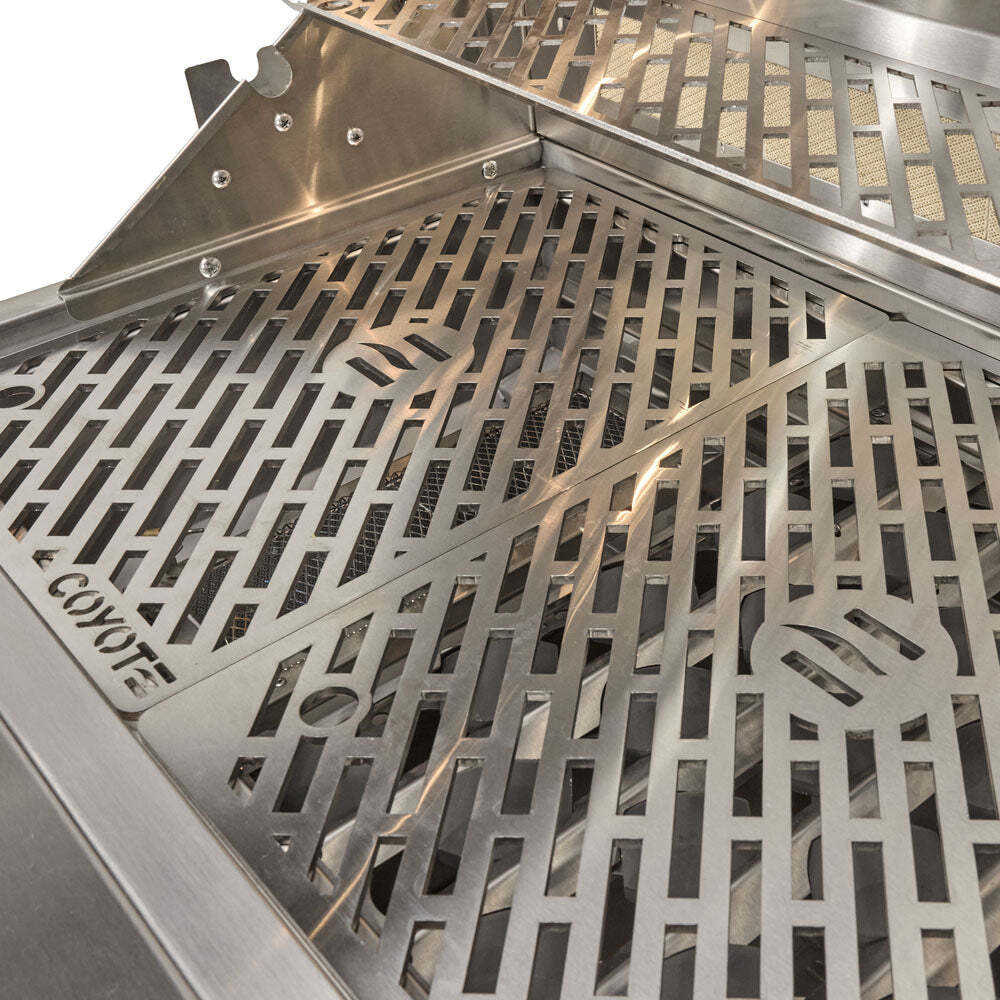

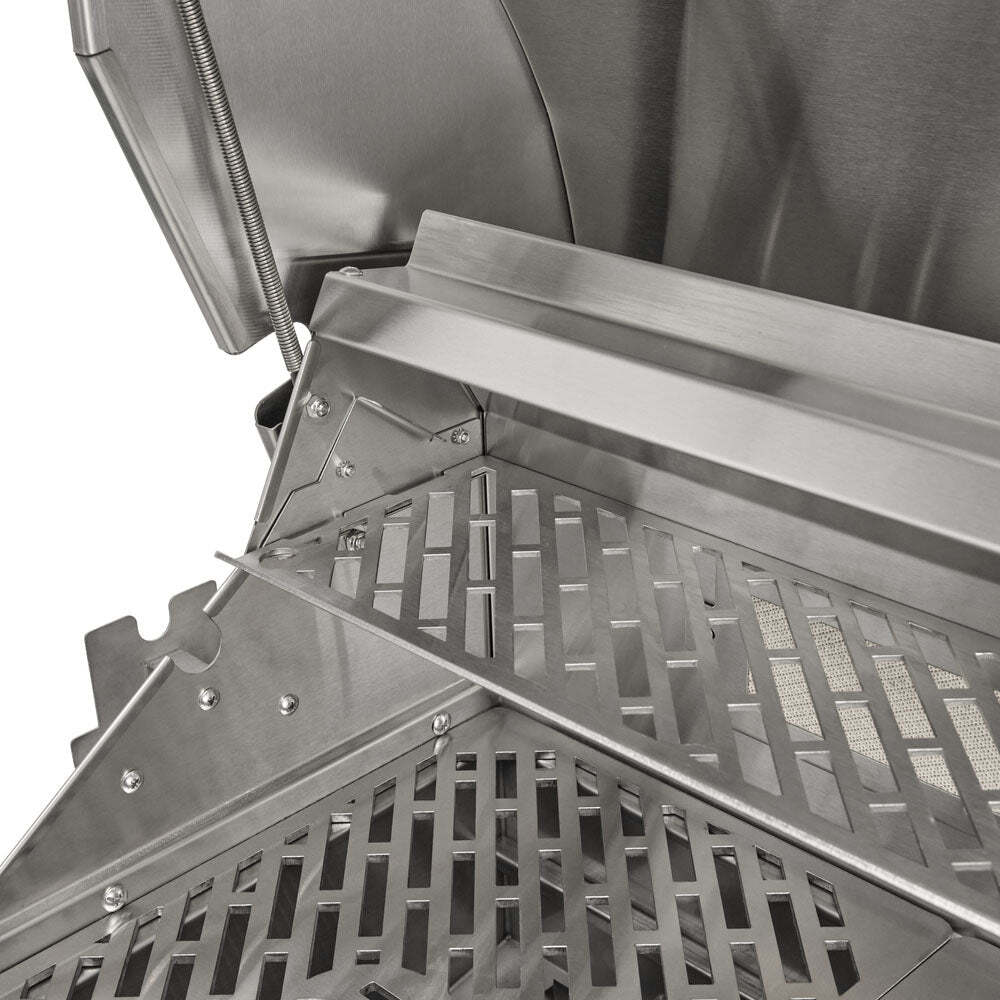

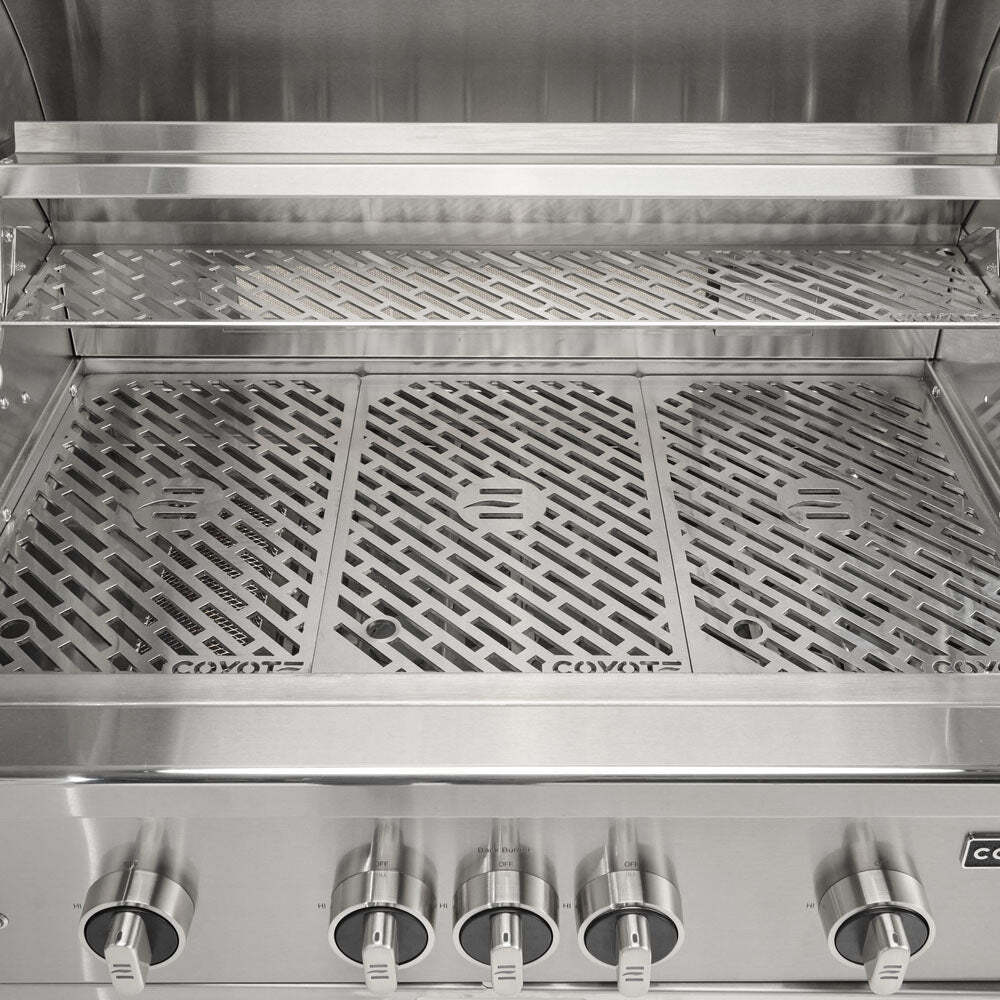

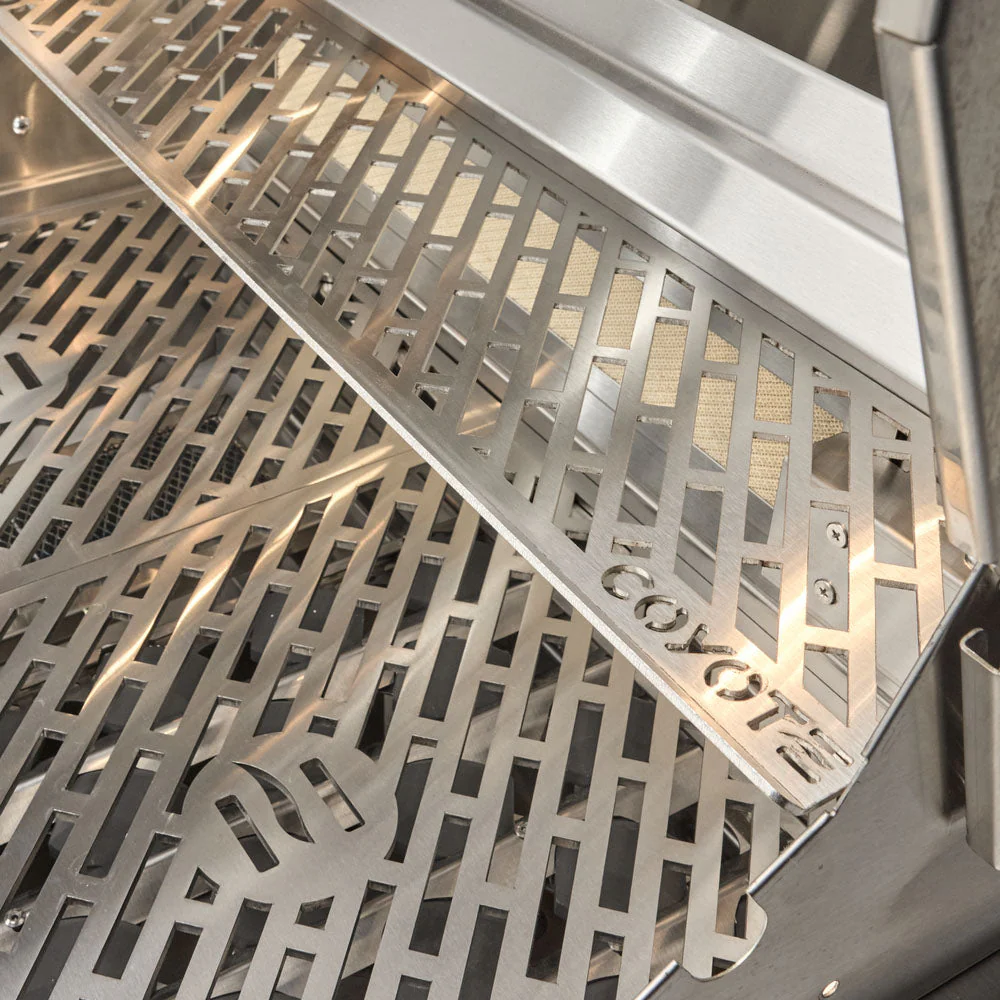

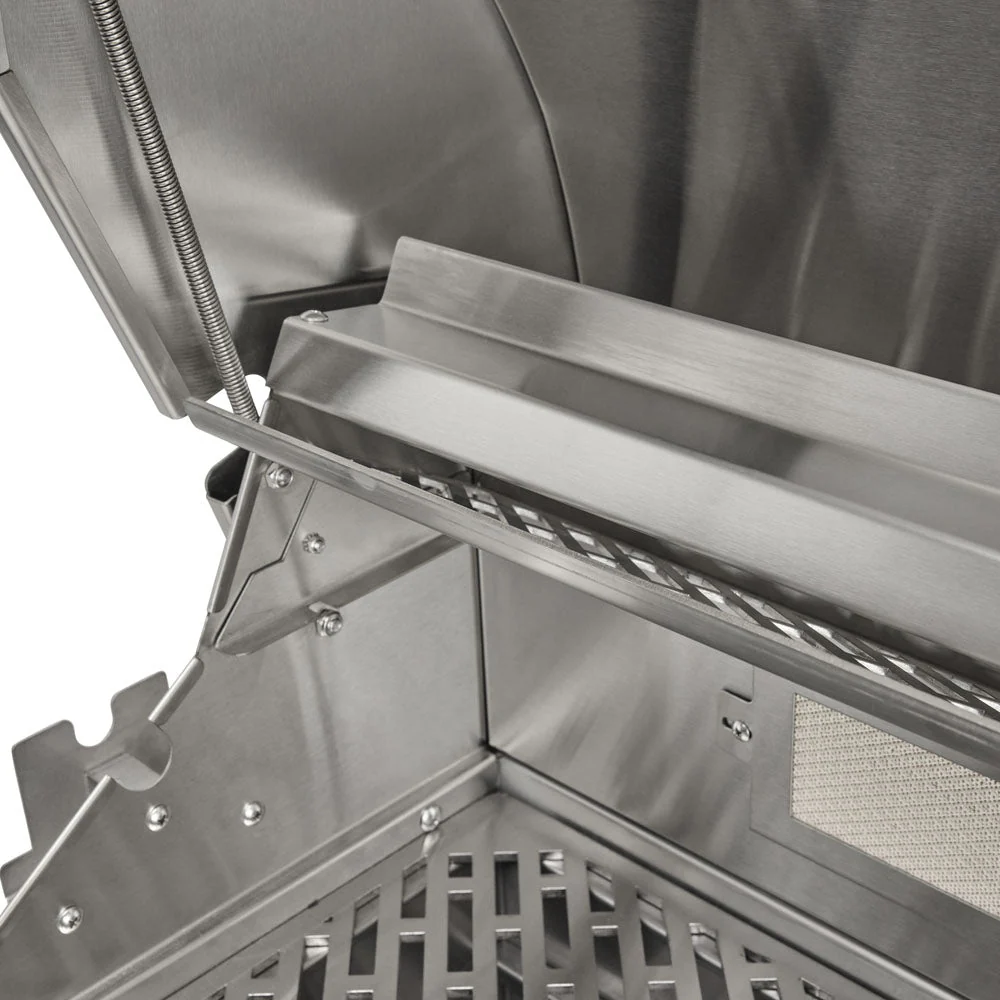

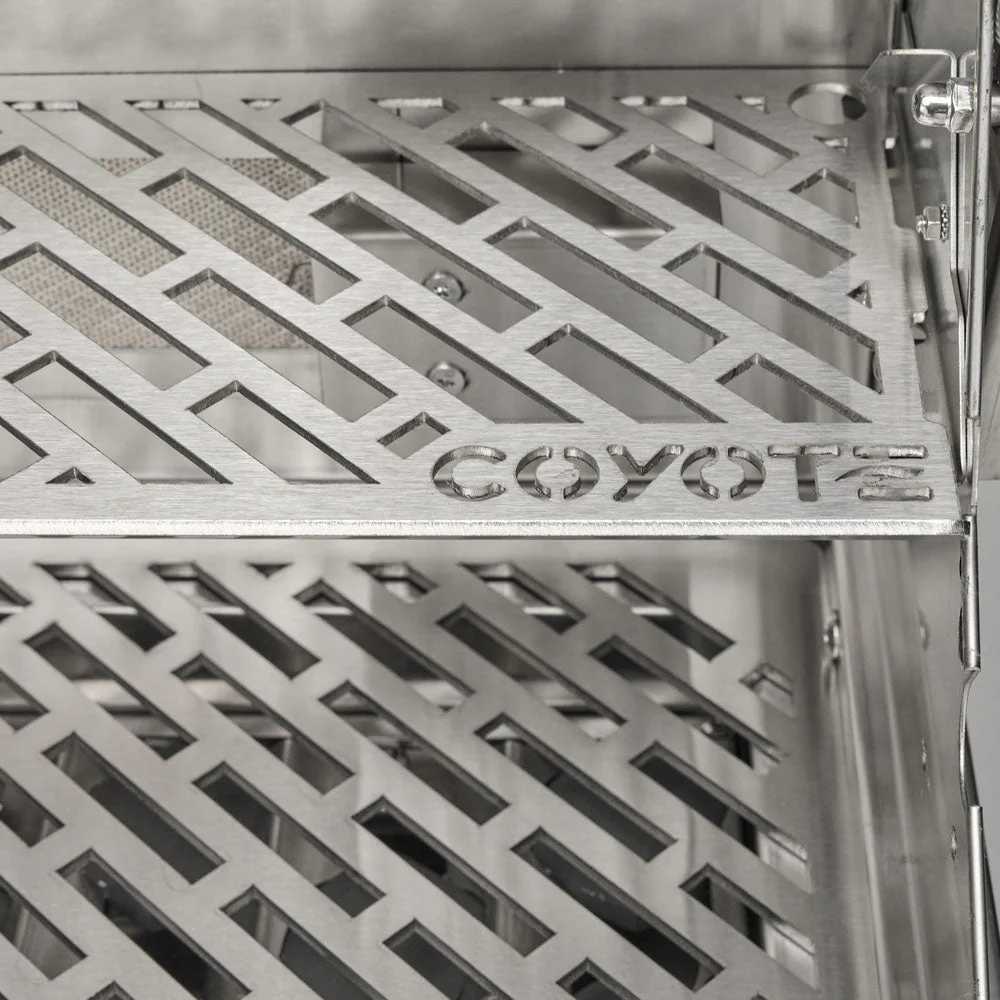

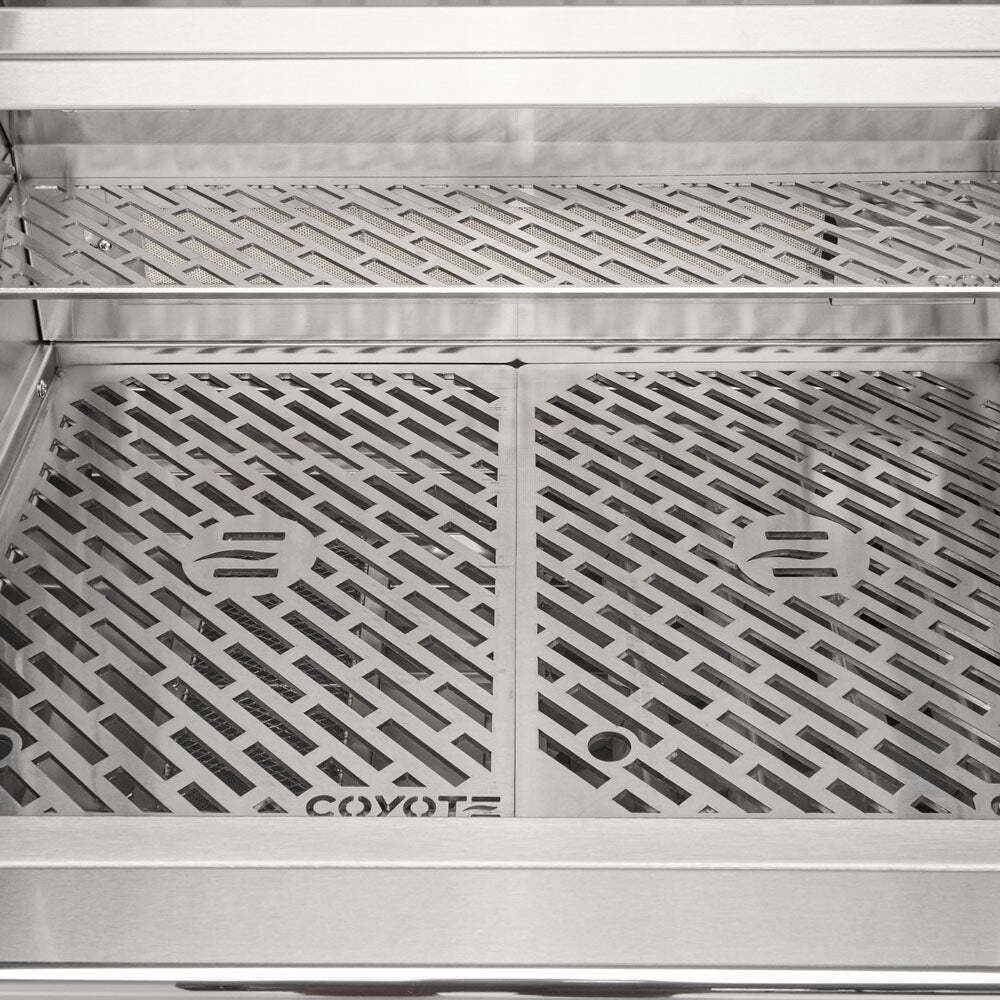

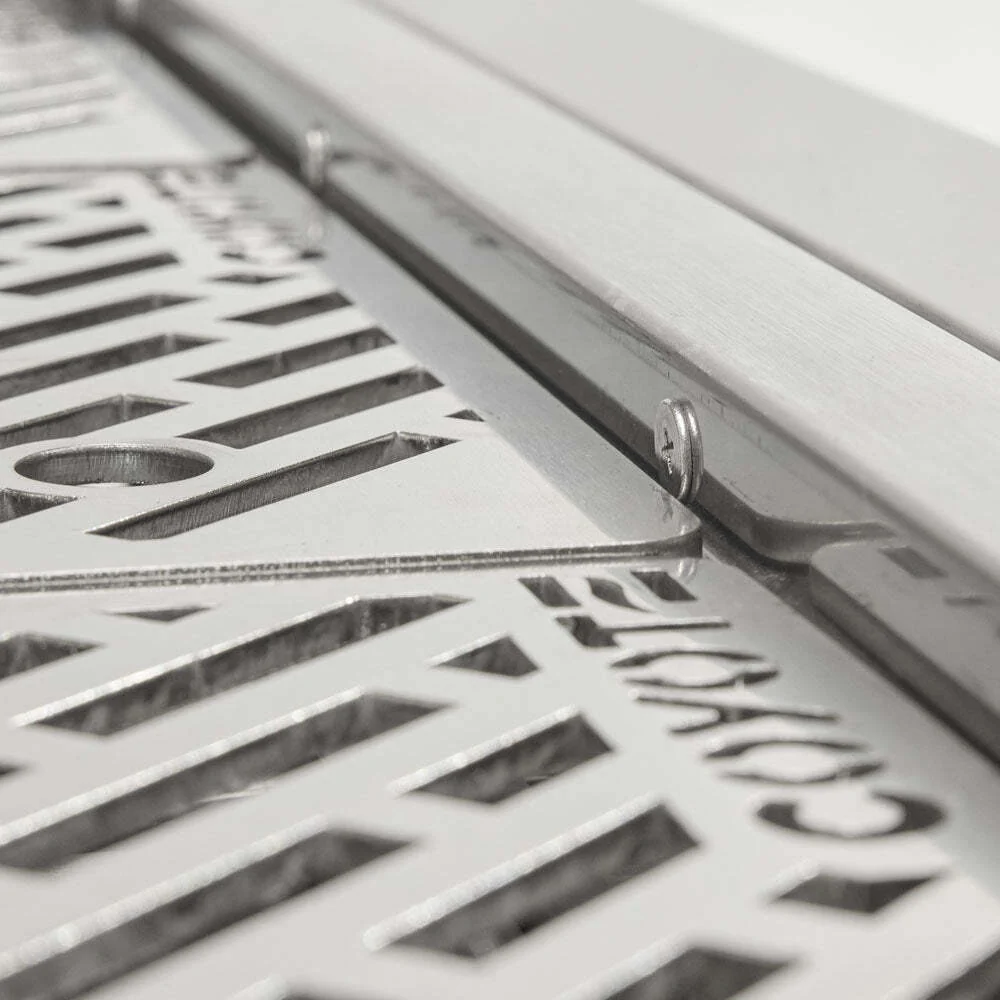

• Laser Cut Grates & Warming Rack
• Rotisserie included

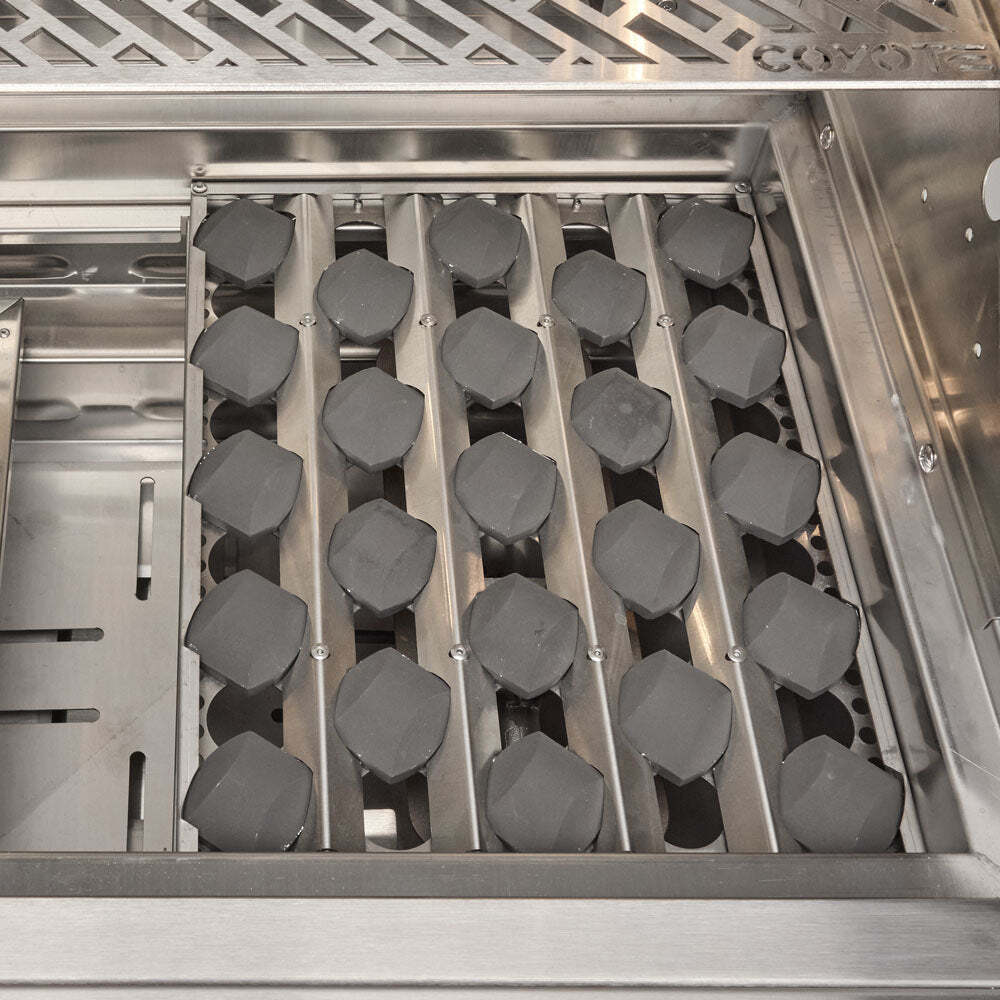

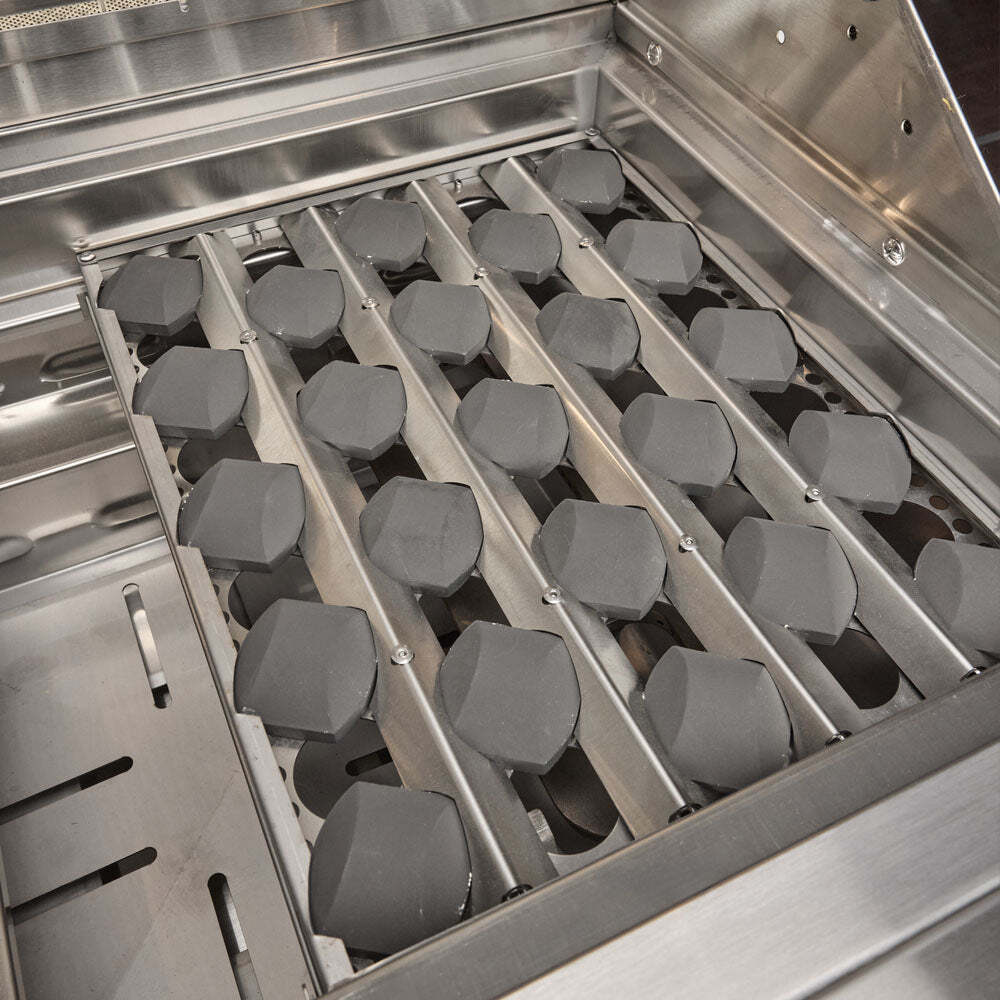

• Volcanic stone ceramic briquettes

Options & Accessories

• Signature Beef Grate For C3SL36 (C3SLSIGRATE36B)
• Signature Vegetable Grate For C3SL36 (C3SLSIGRATE36V)
• Signature Poultry Grate For C3SL36 (C3SLSIGRATE36P)
• Signature Griddle Grate For C3SL36 (C3SLSIGRATE36G)
• Gray Cover For 36" Built-In Gas Grills (CCVR36-BIG)
• Briquette Set For 36" Gas Grills (C3BRIQ36)
• Drop-In Griddle (C1GRDL)
• Insulated Jacket For 36" Gas Grills (CJAKTCS36)
• Cart For 36" CL or SL-Series Grill (C3S36CT)
• 2 Pack of Island Vent Covers (COYVENT)
• Smoker Box (CSBX)

Specification

• Gas Burner Qty: 3
• Gas Burner Total BTU's: 60000
• Sear Burner Qty: 1
• Sear Burner BTU's: 15000

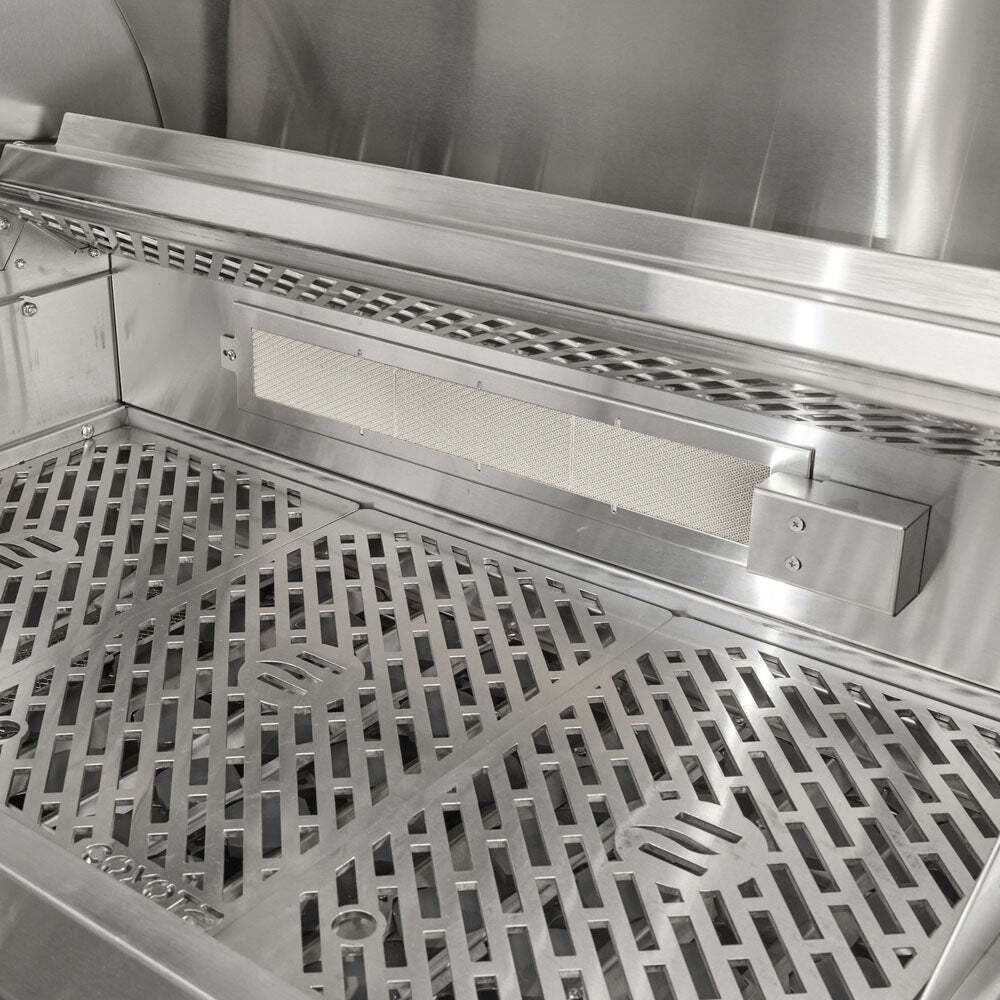

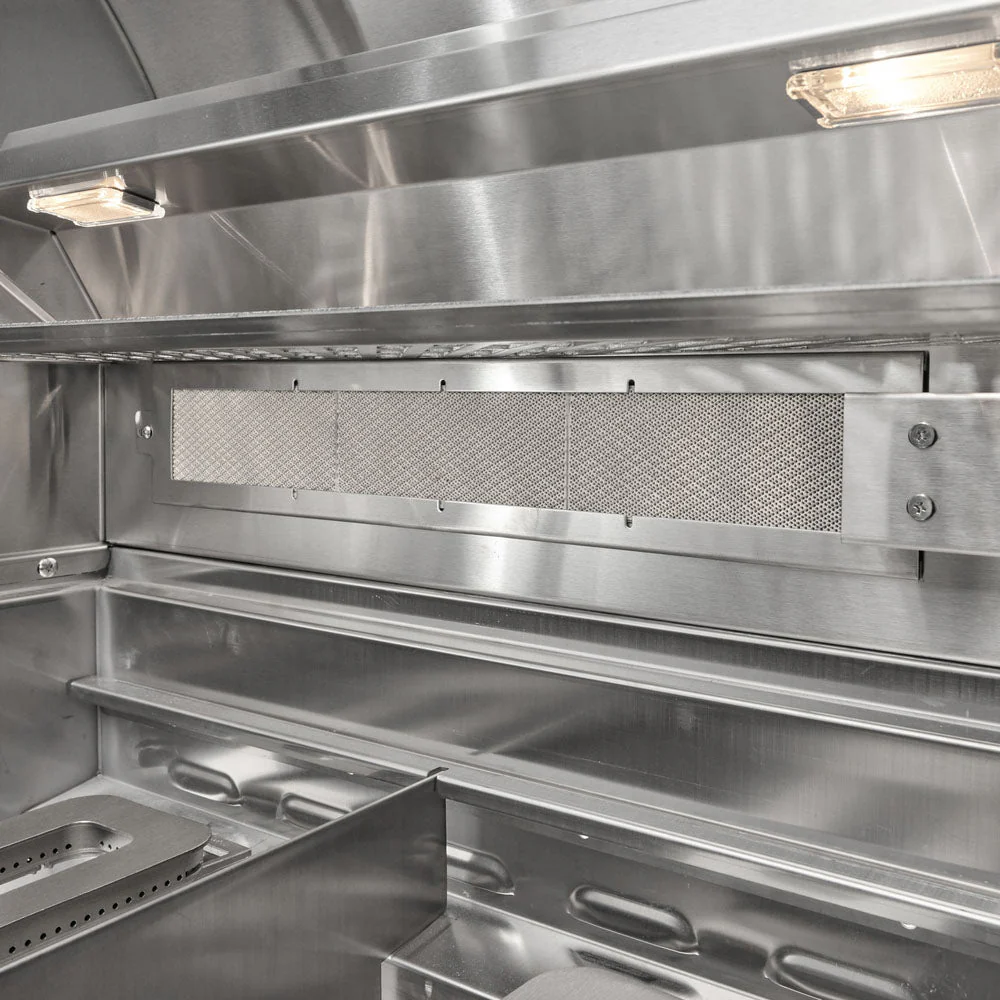

• Rear Burner Qty: 1
• Rear Burner BTU's: 15000
• Power (V): 120
• Number of Hamburgers at One Time: 28
• Main Grilling Area (Sq. In,): 640
• Secondary Grilling Area (Sq. In,): 235
• Exterior Material: Stainless Steel
• Exterior Material Grade: 304
• Heating Grid Material: Ceramic Briquettes
• Cooking Grate Material: Stainless Steel
• Includes Rotisserie Kit: Yes
• Hezt Zone Separators: Yes
• Ignition Type: Flame Thrower
• Safety Valve / Thermocouple: Yes
• Grill Lights: Interior/Exterior
• Spring Assisted Hood: Yes
• Thermometer: Analog
• Includes Smoker Box: Yes

Downloads

C3SL36-Install Guide
C3-Gas-Grill-Manual
Coyote-Outdoor-GEN3-Catalog
Warranty

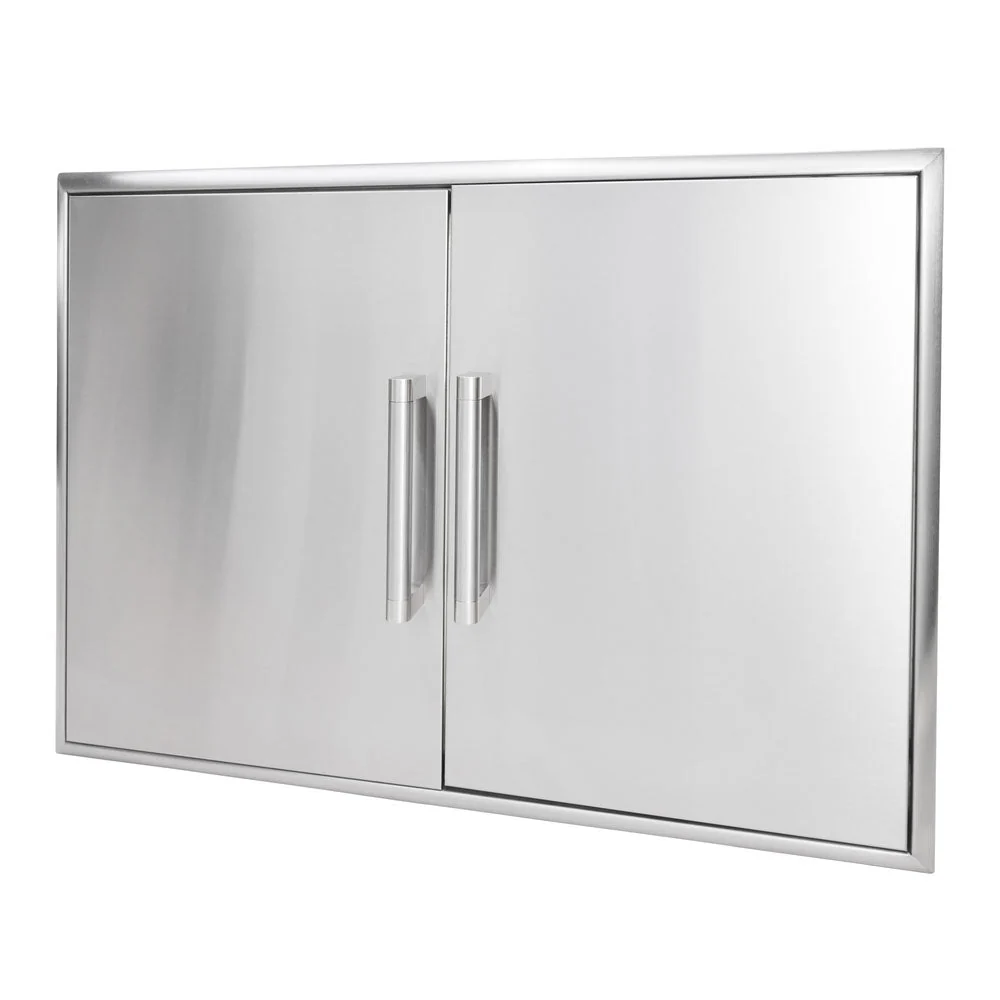

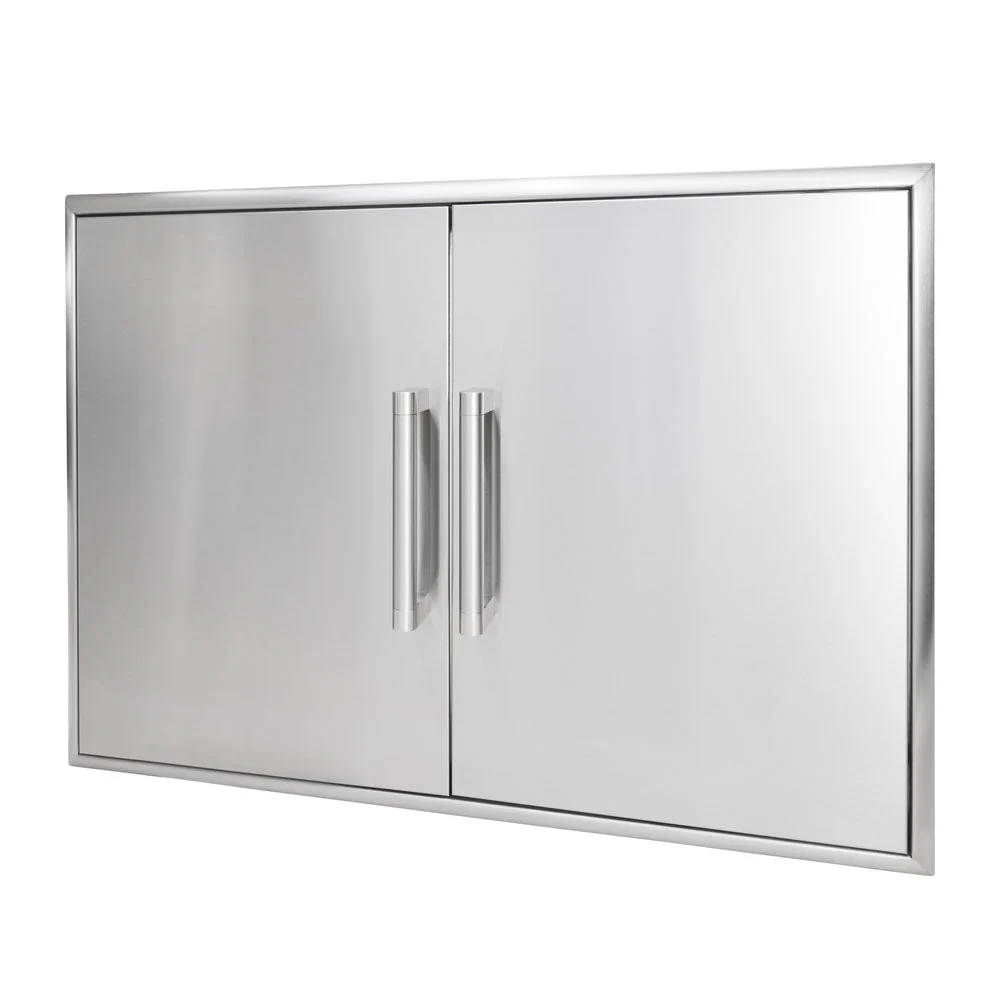

Coyote 36" Double Access Door - C3-DA2436 Features:

Overall Dimensions: 24" H x 35 1/2" W x 5" D
Cutout Dimensions: 20 1/2" H x 31 3/4" W x 2" D

Features & Benefits

• 304 stainless steel construction

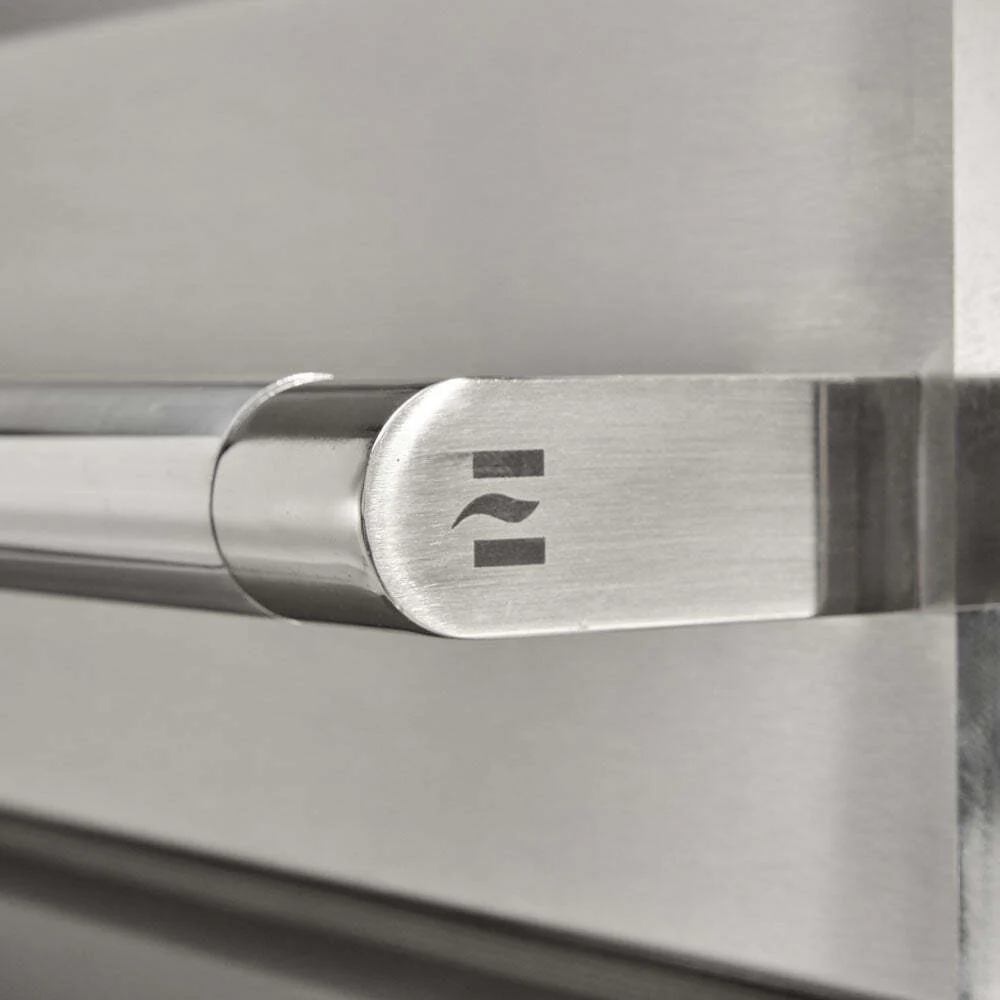

• Newly designed handle and handle end
• Newly designed soft close door hinge
• Open interior for island/wall access capability
• Rigid construction to ensure long term durabilty
• Beveled trim

Specification

• Exterior Material: Stainless Steel
• Exterior Material Grade: 304

Downloads

C3-DA2436-Install Guide
Coyote-Outdoor-GEN3-Catalog
Warranty

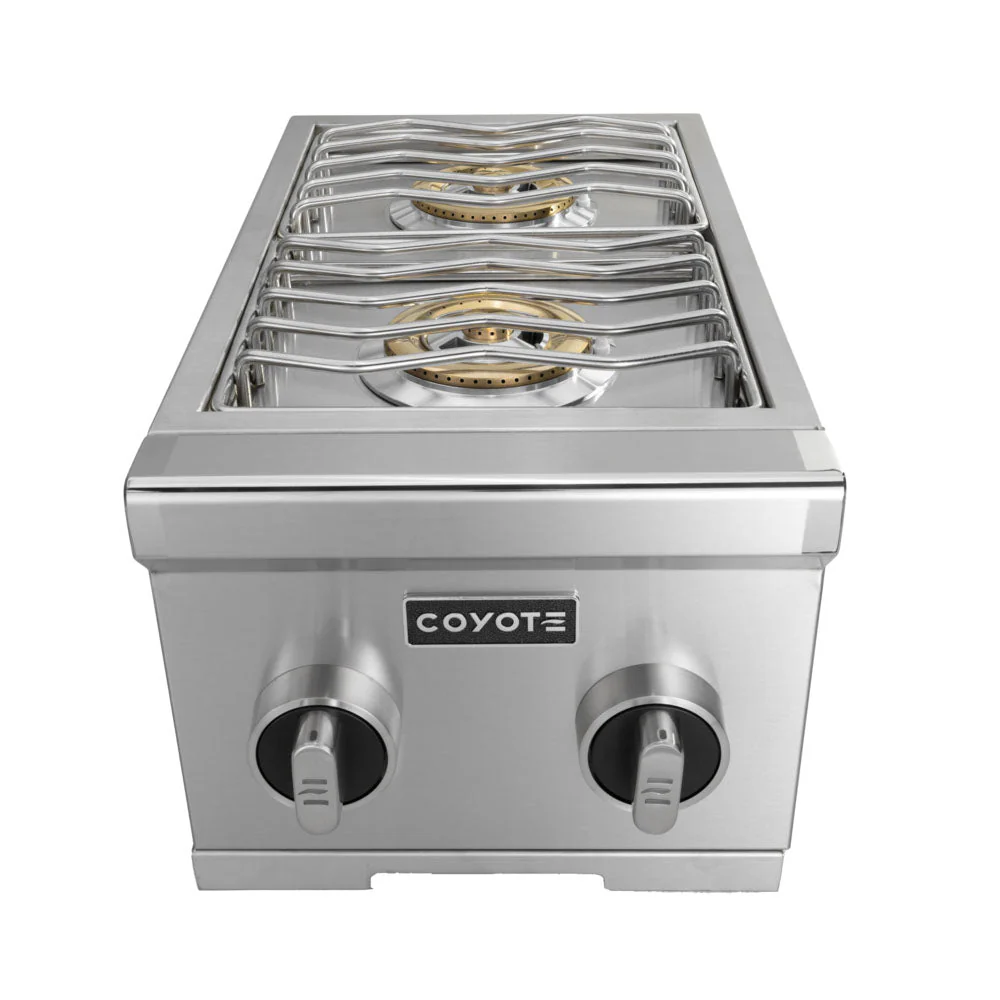

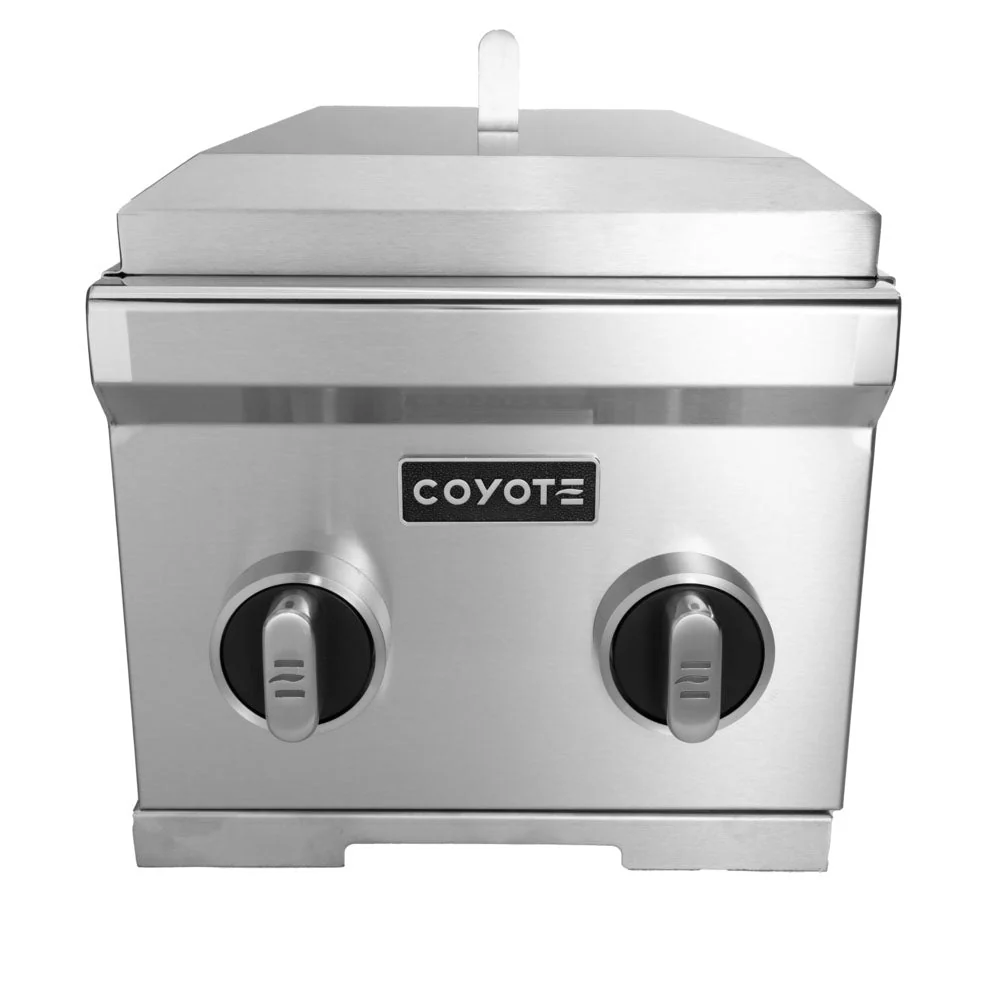

Coyote 12" Built-In Double Side Burner - C3DB Features:

Overall Dimensions: 13" H x 13 1/8" W x 23 1/4" D
Cutout Dimensions: 10 1/4" H x 11 7/8" W x 20 1/4" D

Features & Benefits

• 304 stainless steel construction

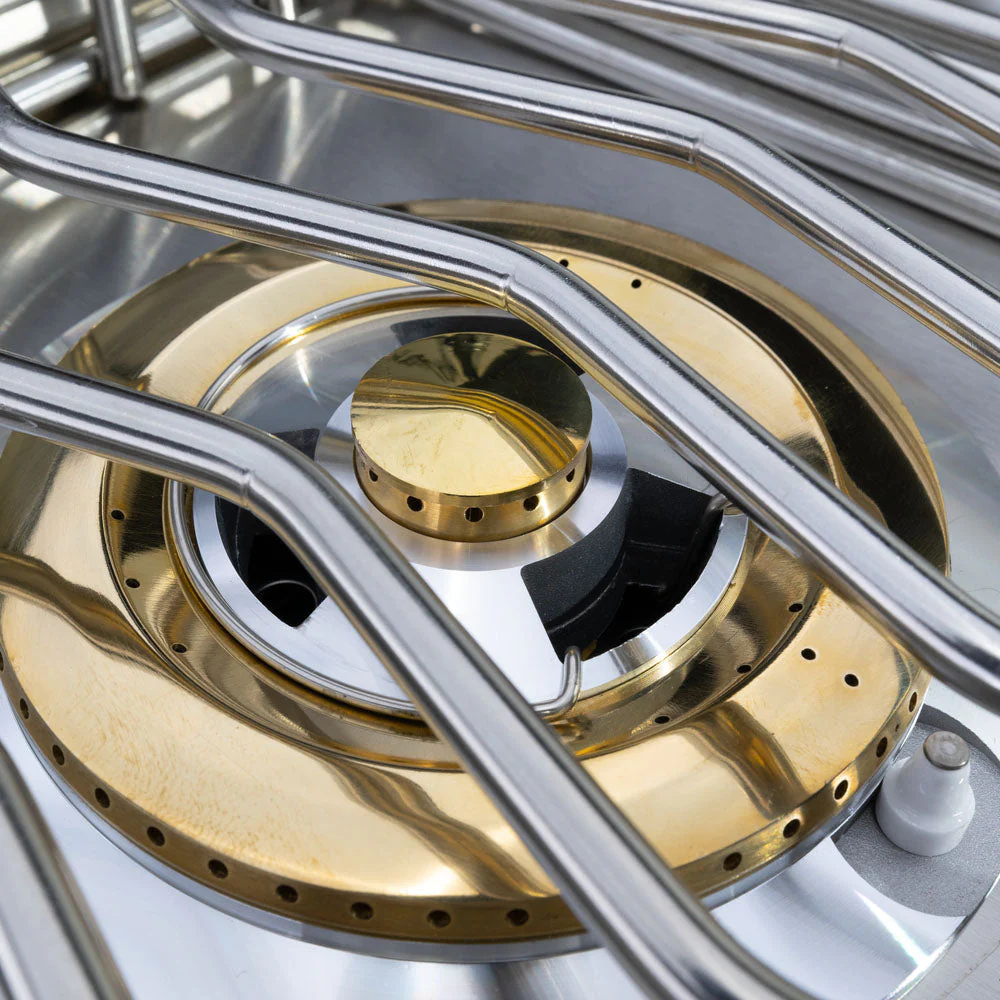

• Two 15,000 BTU brass burners
• Stainless steel lid included
• Newly redesigned knob and bezel
• Newly redesigned end cap and handle on lid

Options & Accessories

• Gray Cover For Double Side Burner (CCVRDB-BIG)
• Insulated Jacket For Double Side Burner (CJAKTC1DB)
• 2 Pack of Island Vent Covers (COYVENT)

Specification

• Gas Burner Qty: 2
• Gas Burner Total BTU's: 30000
• Exterior Material: Stainless Steel
• Exterior Material Grade: 304
• Cooking Grate Material: Stainless Steel
• Hezt Zone Separators: No
• Ignition Type: Flame Thrower
• Safety Valve / Thermocouple: No
• Grill Lights: No

Downloads

C3DB-Install Guide
C3SB-C3DB-Manual
Coyote-Outdoor-GEN3-Catalog
Warranty
